2SC1583 PDF – 50V, 100mA, Dual NPN Transistor

Posted on by Manager

2SC1583 technical information, including its features and specifications is available in this post.

This product features DUAL TRANSISTOR functions.

This is a type of Dual NPN Transistor.

The component is manufactured by Mitsubishi Semiconductor.

Image:

2SC1583 datasheet

Description

The 2SC1583 is a silicon NPN epitaxial type dual transistor designed for low noise differential amplification. Two well-matched transistors are assembled in a small 5-pin single in-line resin-sealed housing, making it ideal for use in stereo preamplifiers, low noise differential amplification in the first stage of main amplifiers, and as an automatic level control (ALC) element in cassette deck recording circuits that require pair characteristics.



Pinouts

2SC1583 replacement



Features

1. High voltage resistance VCEO=50V

2. Low noise NF=0.5dB standard, NV=100mV standard

3. Good pair characteristics hFE1/hFE2=0.98 standard, IVBE1-VBE2=1mV standard

4. High DC current gain hFE=250~800



Applications

Low noise, low level differential voltage amplifier, DC amplifier



For more details, please refer to the file.

2SC1583 Technical Datasheet (PDF)

download

K5A50D – 500V, 50A, MOSFET – Toshiba

Posted on by Manager

Part number: TK5A50D

Functions: 500Vm 5A, Silicon N Channel MOS Type Field Effect Transistor

Package information: TO220F Type

Manufacturer: Toshiba

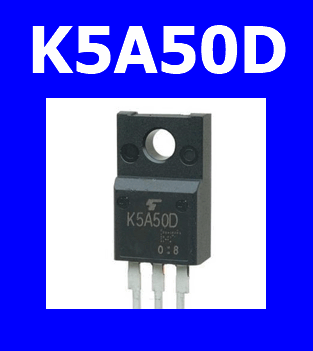

Image:
K5A50D transistor datasheet

Description

The K5A50D is an N-channel MOSFET manufactured by Toshiba, mainly used for switching and power control. This MOSFET is capable of high-speed switching, and features low on-resistance (Rds(on)) and high breakdown voltage (Vdss).

Search Part number : K5A50D ->  Correct Part number : TK5A50D



Functions

1. Low drain-source ON-resistance: RDS (ON)= 1.3 Ω(typ.)

2. High forward transfer admittance: ⎪Yfs⎪= 3.0 S (typ.)

3. Low leakage current: IDSS= 10 μA (max) (VDS= 500 V)

4. Enhancement mode: Vth= 2.4 to 4.4 V (VDS= 10 V, ID= 1 mA)



Pinout

k5a50d-datasheet-pinout



Absolute Maximum Ratings (Ta = 25°C)

1. Drain to source voltage : VDSS = 500 V

2. Gate to source voltage : VGSS = ± 30 V

3. Drain current : ID = 50 A

4. Drain power dissipation : PD = 35 W

5. Single pulse avalanche energy : Eas = 150 mJ

6. Avalanche current : Iar = 5 A

7. Repetitive avalanche energy : Ear = 3.5 mJ

8. Channel temperature : Tch = 150 °C

9. Storage temperature : Tstg = -55 to +150 °C



Applications

1. SMPS (Switch Mode Power Supply): Suitable for applications that require high voltage while also being efficient.

2. DC-DC Converter: Plays a role in improving efficiency in the design of DC-DC converters that require high-speed switching.

3. Motor Drive: Suitable for use in environments that require high voltage and large current, so it is also suitable for driving small electric motors.

Other data sheets within the file : K5A500, TK5A500, TK5A50D

K5A50D Datasheet PDF

download
