FTP23N10A Datasheet – 100V, 57A, MOSFET (Transistor)

Posted on by Manager

Part number: FTP23N10A

Functions: 100V, 57A, N-Channel Enhancement MOSFET.

Package information: TO-220 Type

Manufacturer: IPS

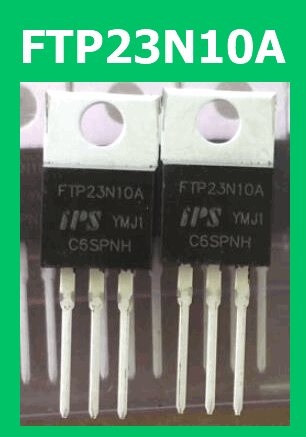

Image :

FTP23N10A datasheet mosfet

Description

The FTP23N10A is an N-channel enhancement-mode power MOSFET designed for high-efficiency switching applications. It is housed in a TO-220 package, making it suitable for through-hole mounting in power electronics. This MOSFET is particularly well-suited for automotive, DC motor control, and power supply applications due to its robust performance characteristics.

Features

• RoHS Compliant

• Low ON Resistance

(1) Ensures minimal conduction losses, enhancing efficiency in power applications.

• Low Gate Charge

(1) Facilitates faster switching speeds, beneficial for high-frequency operations.

• Peak Current vs Pulse Width Curve

• Inductive Switching Curves



Pinout ( Pin arrangement )

FTP23N10A pinout transistor

Absolute Maximum Ratings (Tc = 25°C)

Parameter Symbol Value Unit
Drain-Source Voltage VDSS 100 V
Gate-Source Voltage VGSS ±20 V
Continuous Drain Current ID 57 A
Avalanche Energy (Non-rep) EAS 512 mJ
Power Dissipation PD 200 W
Junction Temperature Tch −55 ~ +175 °C
Storage Temperature Range Tstg −55 ~ +175 °C

Applications

1. Automotive Electronics: Used in power control modules and lighting systems.

2. DC Motor Control: Drives motors in various applications, including robotics and industrial equipment.

3. Switching Power Supplies: Acts as a switch in power conversion circuits.

4. Polarity Protection Circuits: Prevents damage from reverse voltage connections.



FTP23N10A PDF File

download

C4005 PDF – 42V, 2A, NPN Transistor

Posted on by Manager

Transistor C4005 technical information, including its features and specifications is available in this post.

This product features 42V, 2A, NPN Transistor functions.

The name of this part is 2SC4005.  This Package Type is TO-220ML.

The component is manufactured by Sanyo.

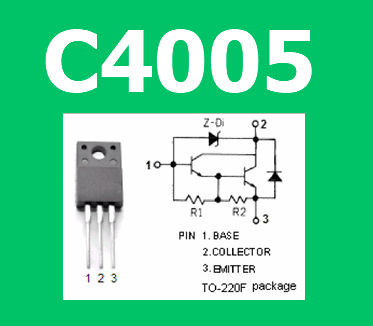

Image:

C4005 datasheet pdf



Description

C4005 transistor is 42V, 2A, NPN Planar Type Silicon Darlington Transistor.



✨ Features

  • High DC current gain
  • Large current capacity and wide ASO (Area of Safe Operation)
  • On-chip Zener diode of 50 ± 8 V between collector and base
  • Uniform collector-to-base breakdown voltage due to accurate impurity diffusion process
  • Large inductive load handling capability
  • Micaless package for easy mounting



📌 Pin Assignment

transistor C4005 pinout

  • 1 : Base
  • 2 : Collector
  • 3 : Emitter



⚠️ Absolute Maximum Ratings (Ta = 25°C)

Parameter Symbol Rating Unit
Collector-to-Base Voltage VCBO 42 V
Collector-to-Emitter Voltage VCEO 42 V
Emitter-to-Base Voltage VEBO 6 V
Collector Current IC 2 A
Collector Current (Pulse) ICP 4 A
Base Current IB 0.4 A
Collector Dissipation PC 2.0 W
Junction Temperature Tj 150 °C
Storage Temperature Tstg -55 to +150 °C





📌 Applications

Designed for switching L loads such as:

  • Motor drivers
  • Printer hammer drivers
  • Relay drivers

[ … ]

For more details, please refer to the file.

C4005 Technical Datasheet (PDF)
