Transistor SVD8N60T Datasheet PDF learn more.
Functions: 600V, 8A, N-CHANNEL MOSFET.
Package information: TO-220-3L Type
Manufacturer: Silan Microelectronics

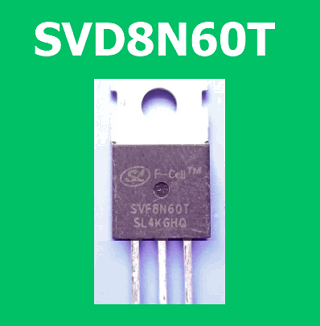

Image:
Description
SVD8N60T is an N-channel enhancement mode power MOSFET developed using Silan’s proprietary S-Rin™ DMOS technology, rated for 600V drain-source voltage and 8A continuous drain current. It features low RDS(on), low gate charge, and fast switching performance, making it suitable for high-efficiency power conversion. This device is widely applied in AC-DC power supplies, DC-DC converters, and H-bridge motor driver circuits.
Features
- 600V drain-source voltage capability
- Continuous drain current up to 8A
- Low RDS(on) (~0.96Ω @ VGS=10V)
- Low gate charge for efficient switching
- Low reverse transfer capacitance (Crss)
- Fast switching characteristics
- Enhanced dv/dt ruggedness
- High avalanche energy capability
Pinout
Absolute Maximum Ratings (Tc = 25 °C)
| Parameter | Symbol | Value | Unit |
| Drain-Source Voltage | VDS | 600 | V |
| Gate-Source Voltage | VGS | ±30 | V |
| Continuous Drain Current | ID | 8 | A |
| Pulsed Drain Current | IDM | 28 | A |
| Power Dissipation | PD | 147 (T) / 48 (F) | W |
| Power Derating | — | 1.18 / 0.38 | W/°C |
| Single Pulse Avalanche Energy | EAS | 530 | mJ |
| Repetitive Avalanche Energy | EAR | 14.2 | mJ |
| Junction Temperature | TJ | -55 to +150 | °C |
| Storage Temperature | Tstg | -55 to +150 | °C |
Design Notes
- Gate drive voltage should be optimized (typically 10V) to achieve low RDS(on)
- Include gate resistor to control switching speed and reduce ringing
- Ensure proper heat sinking, especially for TO-220 (T) package at high load
- Consider snubber or clamp circuits to manage voltage spikes in inductive loads
- Pay attention to dv/dt limits in high-frequency switching applications
Typical Circuit Usage
- Primary switching element in AC-DC SMPS
- DC-DC converter high-side or low-side switch
- H-bridge motor driver circuits
- LED driver power stages
- PWM-controlled power switching systems
How to Choose This Part
- Select based on required voltage margin (600V for offline applications)
- Check RDS(on) versus efficiency and thermal requirements
- Evaluate gate charge for switching frequency constraints
- Ensure avalanche rating meets inductive load conditions
- Choose appropriate package (T or F) based on thermal design
Applications
- Switch mode power supplies (SMPS)
- DC-DC converters
- Motor control systems
- Inverters and UPS systems
- Industrial power electronics
Alternative / Equivalent Products
- IRF840
- STP8NK60Z
- FQP8N60C
- TK8A60D
- IPA60R099P6
[ … ]
