Transistor 2SC1364 Datasheet PDF learn more.
Functions: 50V, 200mA, Silicon NPN APM Transistor.
Package information: TO-92 type
Manufacturer: Sony
Image:
Description
2SC1364 is a silicon NPN small-signal transistor designed for general-purpose amplification and switching applications, with a collector current rating of 200mA and power dissipation of 320mW. It offers moderate voltage capability up to 50V, stable gain characteristics, and is part of a complementary pair with the PNP transistor 2SA678. This device is commonly used in low-power audio stages, signal processing circuits, and driver applications.
Features
- NPN silicon transistor for general-purpose use
- Collector current capability up to 200mA
- Collector power dissipation of 320mW
- Collector-emitter voltage rating up to 50V
- Complementary pairing with 2SA678
- Suitable for amplification and switching applications
- Part of the 2SC1633 / 2SC1634 transistor family

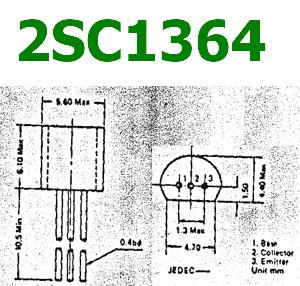

Pinout
Absolute Maximum Ratings (Tc = 25 °C)
| Parameter | Symbol | Value | Unit |
| Collector-Base Voltage | VCBO | 50 | V |
| Collector-Emitter Voltage | VCEO | 50 | V |
| Emitter-Base Voltage | VEBO | 6 | V |
| Collector Current | IC | 200 | mA |
| Base Current | IB | 50 | mA |
| Collector Power Dissipation | PC | 320 | mW |
| Junction Temperature | TJ | 120 | °C |
| Storage Temperature | Tstg | -30 to +150 | °C |
Design Notes
- Operate within safe power dissipation limits to prevent thermal runaway
- Base current should be limited with proper resistor sizing
- Ensure adequate voltage margin below VCEO in switching applications
- Use proper biasing for linear amplification to maintain stability
- Thermal derating may be required in higher ambient temperatures
Typical Circuit Usage
- Low-power audio amplification stages
- Signal switching circuits
- Driver stages for relays and small loads
- Pre-amplifier and buffer stages
- Complementary push-pull amplifier configurations with 2SA678
How to Choose This Part
- Select based on required voltage rating (up to 50V)
- Ensure collector current meets load requirements
- Verify power dissipation fits thermal design constraints
- Check compatibility with complementary PNP transistor if needed
- Consider gain characteristics for amplification applications
Applications
- Consumer electronics circuits
- Audio signal processing
- Switching regulators and control circuits
- General-purpose amplification
- Embedded system I/O driving
Alternative / Equivalent Products
- 2SC1634
- 2SC1815
- BC547
- 2N3904
- 2SA678 (complementary pair)
[ … ]
