LCD LTM220M1-L01 technical information, including its features and specifications is available in this post.
The name of this part is LTM220M1.
This product features 22-inch Display Module functions.
This Active Display Area is 473.76(H) x 296.1(V) mm
The component is manufactured by Samsung.
Description
The LTM220M1-L01 is a 22-inch TFT-LCD module utilizing amorphous silicon technology, featuring a WSXGA+ resolution of 1680×1050 and an integrated backlight and driver circuit. It offers high contrast ratio, fast response time, wide viewing angle, and low power consumption, with a 2-pixel/clock LVDS interface for efficient data transmission. This display is widely used in desktop monitors, industrial display systems, and AV equipment requiring high-quality visual output.
Features
- 22-inch TFT-LCD panel with WSXGA+ (1680×1050) resolution
- Amorphous silicon TFT with TN mode operation
- Wide viewing angle and fast response time
- High contrast ratio with high aperture structure
- 16.7 million colors (Hi-FRC support)
- LVDS interface (2 pixel/clock) with DE-only mode
- Low power consumption (~30.3W typical)
- RoHS and TCO’03 compliant design

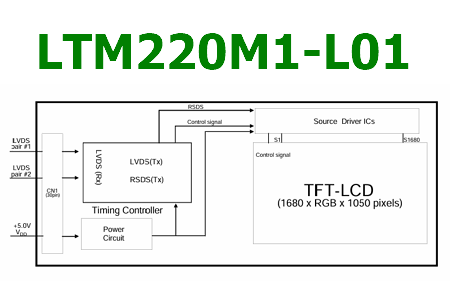

Block Diagram
Absolute Maximum Ratings (Tc = 25 °C)
| Parameter | Symbol | Value | Unit |
| Display Resolution | – | 1680×1050 | pixels |
| Active Area | – | 473.76×296.1 | mm |
| Pixel Pitch | – | 0.282 | mm |
| Power Consumption | PD | 30.3 | W |
| Luminance | L | 300 | cd/m² |
| Display Colors | – | 16.7M | colors |
Design Notes
- Ensure proper LVDS signal routing with impedance control for stable image quality
- Backlight power supply and inverter design must match panel requirements
- Thermal management is important due to ~30W power consumption
- Use shielding and grounding techniques to reduce EMI in high-speed signals
- Proper timing control is required for DE-only interface operation
Typical Circuit Usage
- Desktop monitor display modules
- Industrial control panel displays
- AV equipment display interfaces
- Embedded system graphical output units
How to Choose This Part
- Select for 22-inch display applications requiring WSXGA+ resolution
- Ideal for LVDS-based display controller systems
- Suitable when moderate brightness and high color depth are needed
- Choose for stable, long-term industrial display usage
- Best for applications balancing performance and cost
Applications
- Desktop and workstation monitors
- Industrial machine interfaces
- Multimedia and AV display terminals
- Medical and diagnostic display systems
Alternative / Equivalent Products
- LTM220M1-L02
- M220Z1-L01
- LM220WE1
- CLAA220WA01
[ … ]
For more details, please refer to the file.
LTM220M1-L01 Technical Datasheet (PDF)
