LCD BT140GW01-V9 technical information, including its features and specifications is available in this post.
The name of this part is BT140GW01.

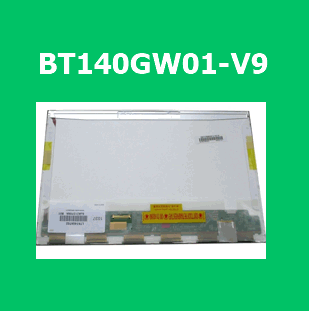

This product features 14.0-inch TFT LCD Module functions.
This Active area is 309.40(H) X 173.95(V) mm.
The component is manufactured by ChiMei.
Description
The BT140GW01-V9 is a 14.0-inch HD TFT-LCD panel featuring a resolution of 1366×768 pixels, LED backlighting, and a slim form factor suitable for portable display applications. It utilizes a 6-bit LVDS interface, offers low power consumption, and provides stable optical performance with a defined viewing direction and moderate brightness. This panel is commonly used in laptops, industrial displays, and embedded systems requiring compact HD visual output.
Features
- 14.0-inch HD resolution (1366×768) TFT-LCD panel
- W-LED backlight system with long lifetime (≥12,000 hours)
- 6-bit LVDS interface supporting 262K colors
- Compact and lightweight design (350g max)
- Glare surface with 3H hardness coating
- Low power consumption (4.2W max)
- Stripe pixel configuration for consistent color rendering
- Optimized viewing direction at 6 o’clock

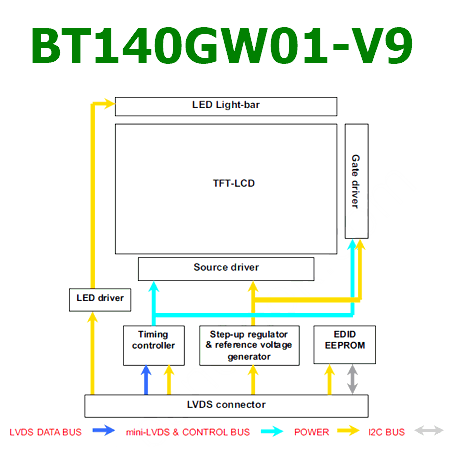

Block Diagram
Absolute Maximum Ratings (Tc = 25 °C)
| Parameter | Symbol | Value | Unit |
| Display Resolution | – | 1366×768 | pixels |
| Active Area | – | 309.4×173.95 | mm |
| Pixel Pitch | – | 0.2265 | mm |
| Power Consumption | PD | 4.2 | W |
| LED Lifetime | – | 12000 | hours |
| Operating Temperature | TOP | 0 to +50 | °C |
Design Notes
- Ensure proper LVDS signal integrity with controlled impedance routing
- Backlight driver circuit must match LED array configuration (9×4)
- Thermal design should consider uniform heat distribution across panel
- Use EMI shielding for high-speed LVDS interface lines
- Power sequencing between logic and backlight is critical
Typical Circuit Usage
- Laptop display panels
- Embedded system user interfaces
- Industrial control display modules
- Portable multimedia devices
How to Choose This Part
- Select for compact 14-inch HD display requirements
- Suitable for systems using LVDS display interface
- Ideal for low power consumption applications
- Choose when moderate brightness and standard viewing angle are acceptable
- Best for cost-effective embedded display solutions
Applications
- Notebook and laptop displays
- Industrial HMI panels
- Medical and diagnostic equipment displays
- Portable computing devices
Alternative / Equivalent Products
- B140XW01
- LP140WH2
- N140BGE-L21
- LTN140AT02
[ … ]
For more details, please refer to the file.
BT140GW01-V9 Technical Datasheet (PDF)
