AD1D15A10 technical information, including its features and specifications is available in this post.
This product features 15V, DC-DC Converter functions.
The component is manufactured by ASTEC.
Description
The AD1D15A10 is a compact 1W isolated DC-DC converter module designed to deliver a regulated 15V output from a nominal 5V input supply. It offers high efficiency, good line/load regulation, and integrates internal filtering within a fully encapsulated polycarbonate package. This converter is typically used in distributed power systems, industrial control circuits, and signal isolation applications.
Features
- Fixed input voltage: 5V ±20%
- Single 15V output configuration
- Output power up to 1000mW
- High efficiency DC-DC conversion
- Excellent line and load regulation
- Internal input filtering capacitor
- Compact epoxy-encapsulated polycarbonate package
- High reliability for industrial environments
- Available in single, dual, and negative output variants

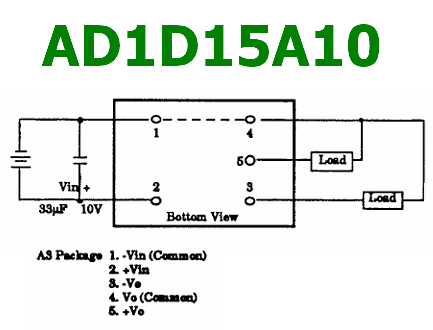

Pinout
Design Notes
- Input decoupling capacitor (e.g., 10µF + 0.1µF) is recommended close to the module
- Output filtering may be added to reduce ripple depending on load sensitivity
- Ensure proper PCB layout to minimize switching noise and EMI
- Thermal considerations are important at full load operation
- Avoid exceeding maximum input voltage to prevent internal damage
Typical Circuit Usage
- Point-of-load isolated power supply from a 5V rail
- Powering analog circuits requiring isolated 15V rails
- Signal chain isolation in industrial measurement systems
- Used in communication modules for noise isolation
- Embedded systems requiring compact isolated DC power
How to Choose This Part
- Select when isolated 15V output is required from a 5V input
- Suitable for low-power applications up to 1W
- Ideal for designs requiring compact and encapsulated modules
- Consider efficiency and thermal limits under continuous load
- Verify output regulation meets system tolerance requirements
Applications
- Industrial control systems
- Data acquisition modules
- Telecommunication equipment
- Medical instrumentation (non-critical isolation)
- Embedded and distributed power systems
Alternative / Equivalent Products
- Murata NME0515SC
- RECOM R1S-0515
- Traco Power TMR1-0515
- MEV1D0515SC
[ … ]
For more details, please refer to the file.
AD1D15A10 Technical Datasheet (PDF)
