Part number : 2SD822
Functions : 30V, NPN Transistor

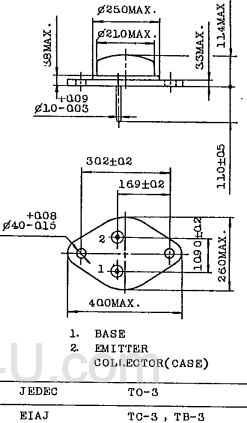

Package: TO-3 Type
Manufacturer: Toshiba

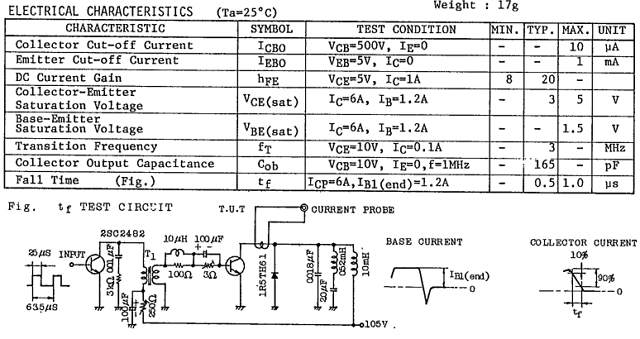

Image :
Features
1. High Voltage : Vcbo = 1500V
2. Low Saturation Voltage
3. High Speed
4. Glass Passivated Collector-Base Junction.
Absolute maximum ratings ( Ta=25°C )
1. Collector to Base Voltage : Vcbo = 40 V
2. Collector to Emitter Voltage : Vceo = 30 V
3. Emitter to Base Voltage : Vebo = 5 V
4. Collector Current : Ic =3 A
5. Total Dissipation : Pc = 1 W
6. Junction Temperature : Tj = 150°C
7. Storage Temperatue : Tsg = -55 ~ +150°C
Application :
Color TV Horizontal Output Applications
2SD822 Datasheet PDF
