C2655 PDF – 50V, NPN Power Amplifier Transistor

Posted on by Manager

Part number : C2655

Functions : Power Amplifier and Switching Applications.

Package: TO-92MOD, TO-92L

Manufacturer: Toshiba, Secos, Unspecified


C2655 NPN Transistor

ABSOLUTE MAXIMUM RATINGS

1. Collector-Base Voltage : VCBO = 50 V
2. Collector-Emitter Voltage : VCEO = 50 V
3. Emitter-Base Voltage : VEBO = 5 V
4. Collector Current : IC = 2 A
5. Collector Current (Pulse) : ICP = 3 A

Pinout :

C2655 pinout datasheet

Functions :

1. Low saturation voltage: VCE (sat) = 0.5 V (max) (IC = 1 A)
2. High collector power dissipation: PC = 900 mW
3. High-speed switching: tstg = 1.0 μs (typ.)
4. Complementary to 2SA1020.
5. Power Amplifier Applications
6. Power Switching Applications

C2655 Datasheet PDF Download

C2655 pdf

download
Other data sheets within the file : 2SC2655

2SC3200 PDF – NPN Transistor – KEC

Posted on by Manager

Part number : 2SC3200

Functions : Silicon NPN Transistor

Package: TO-92 type

Manufactures : KEC, Tohsiba

Image :

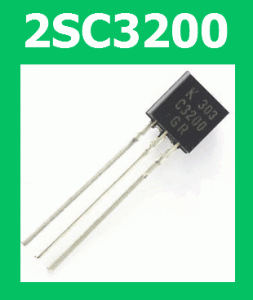

2SC3200 Transistor

The texts in the PDF file :

The 2SC3200 is a transistor for low frequency and low noise applications. This device is designed to lower noise figure in the region of low signal source impedance, and to lower the pulse noise.

Pinout

2SC3200 pinout datasheet
Features

1. Low Noise
2. Low Pulse Noise : Low 1 / f Noise
3. High DC Current Gain : hFE = 200 ~ 700
4. High Breakdown Volage : Vceo = 120 V



Maximum Rating ( Ta = 25’c )

1. Collector-Base Voltage : Vcbo = 120 V
2. Collector-Emitter Volage : Vceo = 120 V
3. Emitter-Base Voltage : Vebo = 5 V
4. Collector Current : Ic = 100 mA

[ … ]

2SC3200 Transistor Datasheet
