D70F3425 Datasheet PDF learn more.

Part number : μPD70F3425GJ, UPD70F3425, D70F3425

Functions : 32-bit Single-Chip Microcontroller

Package information : LQFP 144 Pin Type

Manufacturer: Renesas Electronics

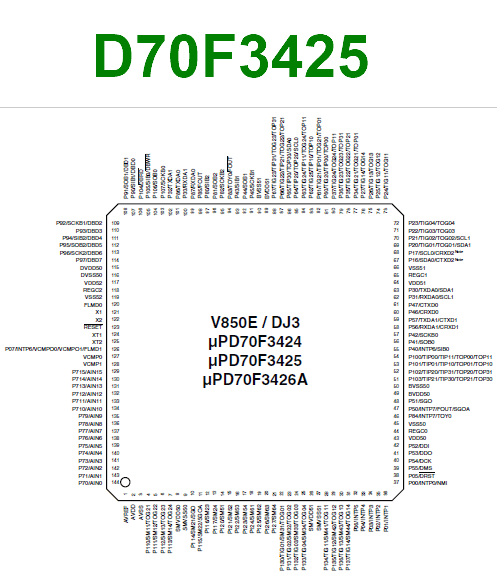

Image :

The texts in the PDF file :

The V850E/Dx3 – DJ3/DL3 single-chip microcontroller is a member of Renesas Electronics V850 32-bit RISC family, which match the performance gains attainable with RISC-based controllers to the needs of embedded control applications. The V850 CPU offers easy pipeline handling and programming, resulting in compact code size comparable to 16-bit CISC CPUs.

The V850E/Dx3 – DJ3/DL3 provides an excellent combination of general purpose peripheral functions, like serial communication interfaces (UART, clocked SI), Timers and measurement inputs (A/D converter), with dedicated CAN network support. Control and driver for 6 stepper motors are included.
The device offers power-saving modes to manage the power consumption effectively under varying conditions.

Clock signals

After applying a reset, only release the reset line after the operating clock signal has become
stable. When switching the clock signal during program execution, wait until the target clock signal
has stabilized.

– When the clock signal is generated with an external resonator (or from an external oscillator)
during a reset, ensure that the reset line is only released after full stabilization of the clock
signal. Moreover, when switching to a clock signal produced with an external resonator (or by an
external oscillator) while program execution is in progress, wait until the target clock signal is
stable.

[ … ]

D70F3425 PDF File

78F0531A Datasheet PDF learn more.

Part number : D78F0531AGB-GAH-AX, UPD78F0531AGB-GAH-AX, 78F0531A

Functions : 8-Bit Single-Chip Microcontroller

Package information : 64 Pin Type

Manufacturer: Renesas Electronics, NEC

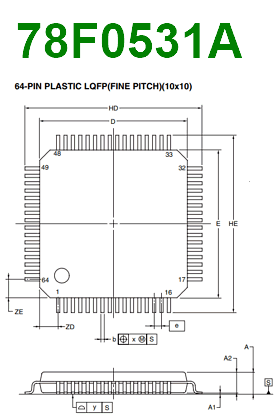

Image :
