LCD VVX32H101G00 Datasheet PDF learn more.
Functions: 32-inch TFT LCD module.
Effective display area: 697.685 (H) × 392.256 (V) mm
Manufacturer: Panasonic
Image:
Description
VVX32H101G00 is a 32-inch TFT-LCD display panel designed for high-definition visual applications using LED backlight technology. The panel supports a resolution of 1366×768 pixels with RGB vertical stripe pixel arrangement and provides up to 16.7M displayable colors with wide 178° viewing angles. It is commonly used in digital signage, television displays, industrial monitors, and large-format embedded display systems.
Features
- 32-inch TFT-LCD display panel
- HD resolution of 1366 × 768 pixels
- RGB vertical stripe pixel arrangement
- Supports up to 16.7M display colors
- Wide viewing angle of 178° (horizontal and vertical)
- Transmissive normally black display mode
- Semi-glare surface treatment for reduced reflections
- Mini LVDS interface for high-speed signal transmission
- LED backlight system with 72 LED tips
- Designed for large display and multimedia systems

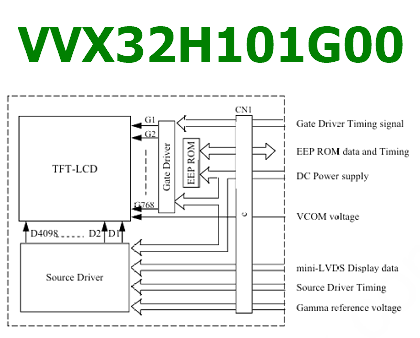

Block Diagram
Absolute Maximum Ratings (Tc = 25 °C)
| Parameter | Value | Unit |
| Display Size | 32 | inch |
| Resolution | 1366 × 768 | pixels |
| Active Area | 697.685 × 392.256 | mm |
| Pixel Pitch | 0.51075 × 0.51075 | mm |
| Display Colors | 16.7M | colors |
| Viewing Angle | 178 / 178 | degree |
| Interface | Mini LVDS | — |
| Backlight | 72 LED | — |
| Module Dimensions | 735.4 × 433.0 × 37.0 | mm |
| Weight | 6000 | g |
Design Notes
- The panel requires a compatible LVDS display controller capable of driving 1366×768 resolution.
- Ensure the LED backlight driver provides stable current for the integrated LED backlight system.
- Proper EMI shielding and grounding improve signal integrity in high-speed LVDS interfaces.
- Mechanical mounting must distribute pressure evenly across the display frame.
- A stable regulated power supply is recommended to prevent flickering or display instability.
Typical Circuit Usage
- LCD television display modules
- Digital signage display systems
- Industrial HMI panels
- Multimedia information displays
- Embedded display systems with LVDS controllers
How to Choose This Part
- Select when a 32-inch HD LCD panel is required.
- Suitable for designs using LVDS display interfaces.
- Recommended for wide viewing angle applications.
- Ideal for multimedia display systems requiring 16.7M color capability.
- Appropriate for digital signage or industrial display equipment.
Applications
- LCD televisions
- Digital signage displays
- Industrial monitoring systems
- Information kiosks
- Large embedded display panels
Alternative / Equivalent Products
- V320B1-L01 TFT LCD panel
- LC320WXN display module
- LTA320AP33 LCD panel
- V315B1-L01 display module
[ … ]

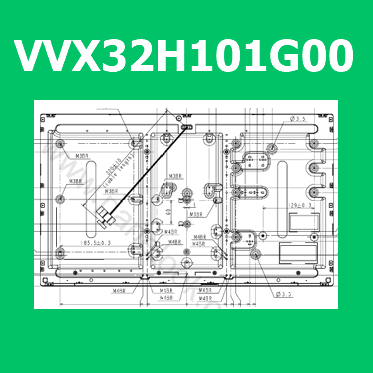

VVX32H101G00 PDF File
