LCD V390HJ1-P02 Datasheet PDF learn more.
Part number: V390HJ1
Functions: 38.5-inch TFT LCD Module.
Active Area: 853.92(H) x 480.33(V) [mm]
Manufacturer: CMI MEI
Image:
Description
V390HJ1-P02 is a 38.5-inch TFT-LCD panel designed for Full HD display applications, integrating driver ICs and a 2-channel LVDS interface for high-resolution video input. It supports a native resolution of 1920×1080 with 16.7M colors (8-bit per color) and utilizes a transmissive, normally black display mode to achieve high contrast performance. This panel is commonly used in large-format monitors, digital signage systems, industrial visualization equipment, and embedded multimedia displays.
Features
- 38.5-inch TFT-LCD panel supporting Full HD 1920×1080 resolution
- 16.7M color display capability (8-bit per RGB channel)
- 2-channel LVDS interface for high-speed digital video input
- Transmissive mode with normally black display structure
- Typical contrast ratio of 3000:1
- Wide viewing angle: ±88° horizontal and ±88° vertical (CR≥20)
- RGB vertical stripe pixel arrangement
- Thin glass structure with 0.5mm array and 0.5mm color filter glass
- Large active display area of 853.92mm × 480.33mm

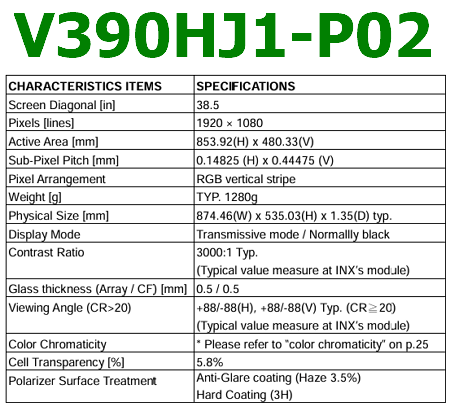

Specifications
Design Notes
- Ensure LVDS differential pairs are routed with controlled impedance and matched trace lengths to maintain signal integrity.
- Provide stable power regulation and proper decoupling capacitors near the driver IC supply pins.
- Backlight driver circuitry must be designed separately according to the panel backlight specifications.
- Mechanical mounting should consider the large panel size and minimal thickness of 1.35mm to prevent mechanical stress.
- Thermal management should be considered in enclosed display systems to maintain panel reliability.
Typical Circuit Usage
- Full HD display panel connected to an LVDS video controller board
- Digital signage systems with embedded media processors
- Industrial monitoring displays using LVDS output GPUs
- Large-format multimedia presentation panels
- Commercial advertising display systems
How to Choose This Part
- Select when a 38.5-inch Full HD panel is required for large display applications.
- Suitable for systems using dual-channel LVDS video interfaces.
- Recommended when high contrast ratio and wide viewing angles are important.
- Ensure system enclosure supports the panel dimensions of 874.46mm×535.03mm.
- Ideal for applications requiring 16.7M color depth and large active viewing area.
Applications
- Digital signage displays
- Commercial LCD monitors
- Industrial visualization systems
- Information kiosks
- Large-format multimedia display panels
Alternative / Equivalent Products
- V390HJ1 series TFT-LCD panels
- V400HJ6 Full HD display panel
- LC390TA series 39-inch LCD panel
- T390HVN Full HD TFT-LCD module
[ … ]
V390HJ1-P02 PDF File
